Features:
High transmission capacity, long service life, high transmission efficiency, used for the transmission of automotive engine cooling fan.
1. High strength, high elasticity, and good durability
2. Special base rubber is used, with small elongation and long service life
3. Excellent heat, oil and wear resistance
4. High transmission efficiency
5. Applicable to small diameter pulleys
6. Safe performance can be guaranteed even at high speed
Raw-edged V-belt
| Cutting Teeth Belt Teeth | Model | Top width(mm) | thickness（mm） | Length convertion |
| Classical (Li in inches) |
10 | 6 | Li=La-38 | |
| 13 | 8 | Li=La-50 | ||
| 17 | 11 | Li=La-69 | ||
| CX | 22 | 14 | Li=La-88 | |
| Wedge (Lp in mm) |
XPZ | 9.7 | 8 | Lp=Li+38 |
| XPA | 12.7 | 10 | Lp=Li+45 | |
| XPB | 16.3 | 13 | Lp=Li+60 | |
| XPC | 22 | 18 | Lp=Li+83 | |
| Narrow (La in 1/10 inches) |
3VX | 9.7 | 8 | La=Li+42 |
| 5VX | 15.7 | 13.5 | La=Li+71 | |
| 8VX | 25 | 23 | La=Li+120 |
Raw Edge V Belt Type & Sizes
Structure
| Number Name | Name | Function | Material |
| 1 | Top Fabric | Protect the lining tensile member | Polyester Cotton Canvas |
| 2 | Core Cord | Nuclear material to pass the dynamic force | Polyester |
| 3 | Bottom Rubber | Side compression resistant and sectionshape maintained | CR，EPDM |
| 4 | Bottm Fabric | Absorb tne impact and preventcrack of the core rubber | Elastic Fabric |

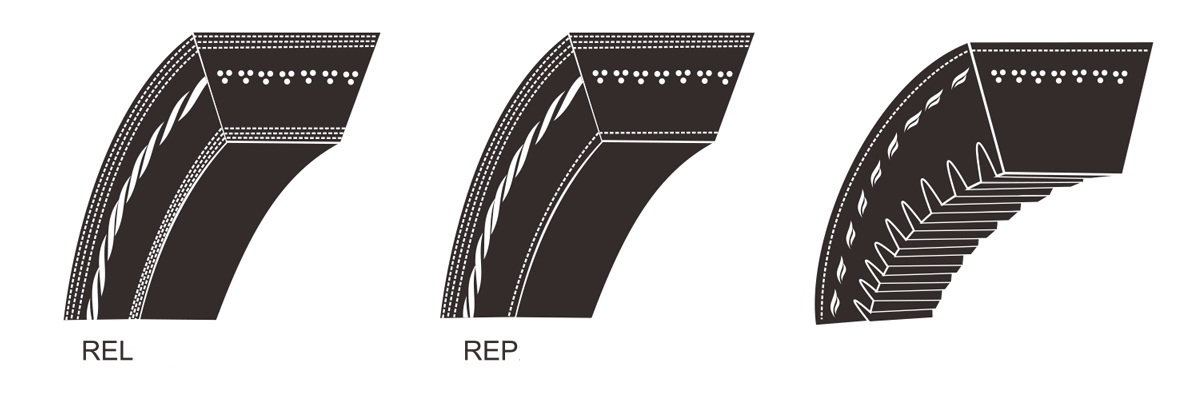

Section Size of Raw Edge V Belts for Automobile
| Model | Top Width | high | |||
| Raw Edge Belt | Adhesive Fabric for the Base Rubber | Cut-Edged Belt with Teeth | Wedge Angle | ||
| AV-10/9.5 | 10 | 7.5 | 7.5 | 8 | 40 |
| AV-13/12.5 | 13 | 8.5 | 8.5 | 9 | 40 |
| AV-15 | 15 | —— | —— | 9 | 40 |
| AV-17 | 17 | 9.5 | 9.5 | 11 | 40 |
| AV-22 | 22 | —— | —— | 13 | 40 |
