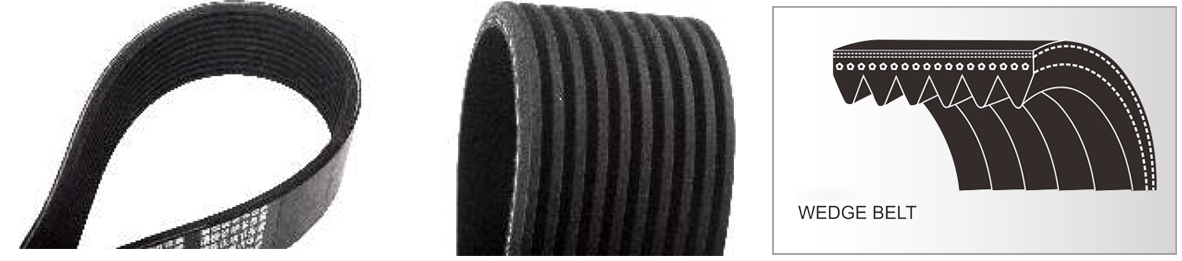

Features:
1、High transmission power, 30% higher than ordinary V-belt under the same conditions.
2、Compact transmission system, with the occupied space 25% smaller than ordinary V-belt under the same transmission power
3. The flat soft belt is suitable for both the transmission of the small pulleys and the high-speed transmission of 40/s. It has the characteristics of small vibration, less divergence and smooth operation.
4. Heat and oil proof.

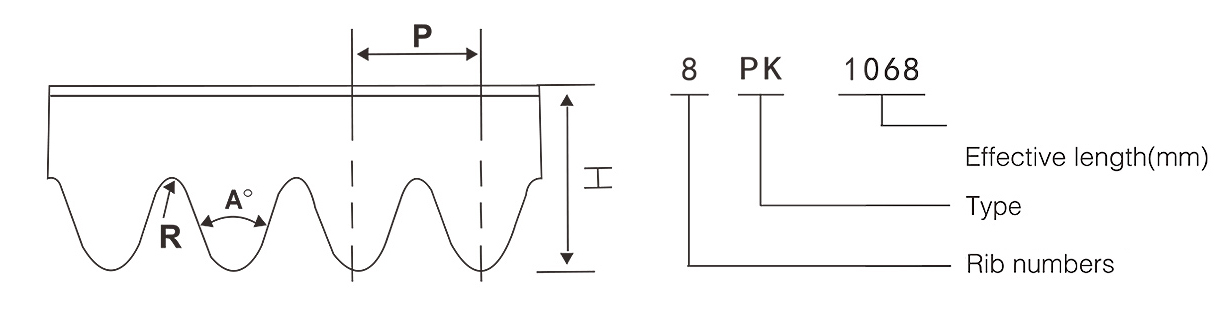

| Type | PIBSECTION | THICKNESS | RIB HEIGHT | SLOT BOTTOM (MAX) | RIBTOP(MIN) | ANGLE |
| (Approximation) | (Approximation) | |||||
| P | H | H | R1 | R2 | a°±0.5° | |
| H | 1.6 | 3 | 1.33 | 0.15 | 0.3 | 40 |
| J | 2.34 | 4 | 2.35 | 0.2 | 0.4 | 40 |
| K | 3.56 | 6 | 3.2 | 0.25 | 0.5 | 40 |
| L | 4.7 | 10 | 4.98 | 0.4 | 0.4 | 40 |
| M | 9.4 | 17 | 10.35 | 0.75 | 0.75 | 40 |
