Chevron conveyor belt is composed of belt carcass and pattern. Pattern shape and height(depth) may be different because of different conveyes material and gradient of conveyors.
Application
It can convey powdered,granulates and small lump materials at the gradient of no more than 40;it can also convey packaged materials.
C6/C15/C25/Y32/V6
Chevron Type
| Chevron Type | Pattern | C.H(mm) | C.W(mm) | C.P(mm) | Belt Width |
| mm | |||||
| C6 | C6-P230 | 6 | 230 | 75 | 300-400 |
| C6 | 6 | 300-1200 | 100 | 300-1200 | |
| V6 | V6 | 6 | 600-1800 | 75 | 600-1800 |
| C12 | C12-V800 | 12 | 800 | 150 | 800-1200 |
| C15 | C15 -V330 | 15 | 330 | 250 | 400-600 |
| C15-P385 | 15 | 385 | 250 | 500-800 | |
| C15-V450 | 15 | 450 | 300 | 600-600 | |
| C15-P500 | 15 | 500 | 340 | 550-750 | |
| C15-P600 | 15 | 600 | 250 | 750-1000 | |
| C15-P750 | 15 | 750 | 250 | 900-1200 | |
| C25 | C25-P450 | 25 | 450 | 335 | 600-750 |
| C25-P550 | 25 | 550 | 250 | 600-800 | |
| C25-P750 | 25 | 750 | 330 | 900-1200 | |
| Y32 | Y32-P450 | 32 | 450 | 255 | 500-800 |
| Y32-P600 | 32 | 600 | 300 | 800-1000 | |
| Y32-P800 | 32 | 800 | 333 | 1050-1200 |
-
-

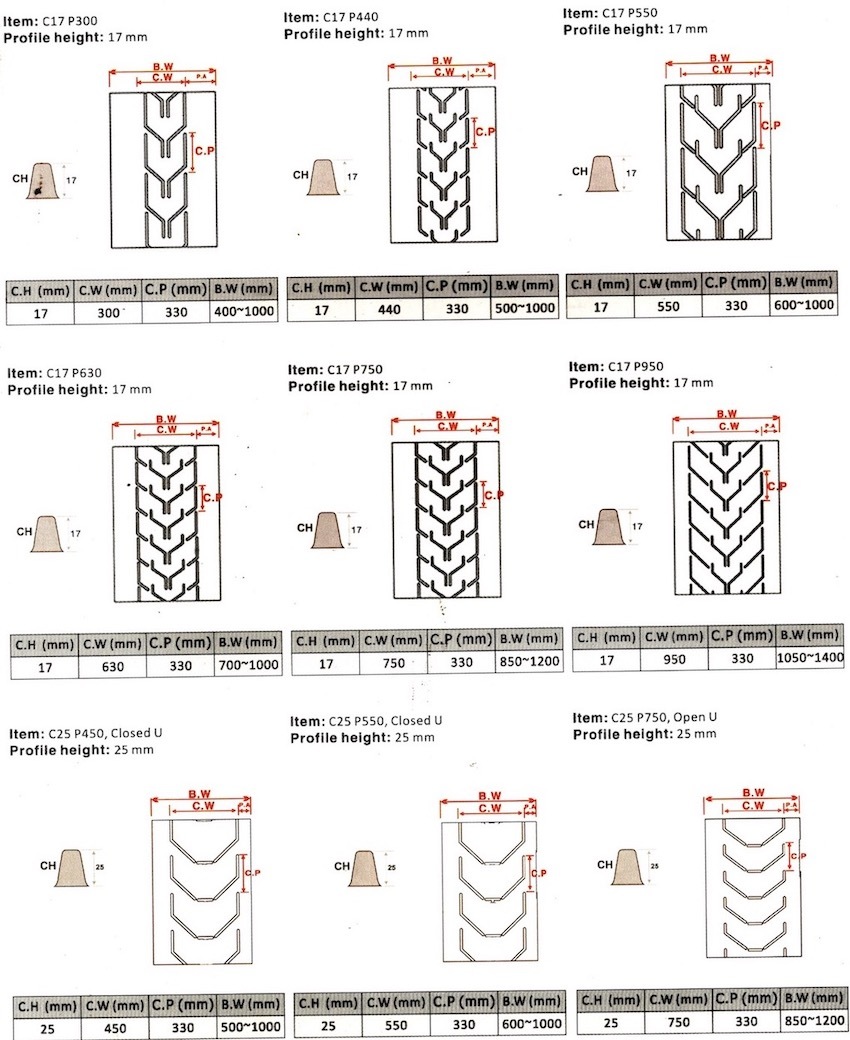

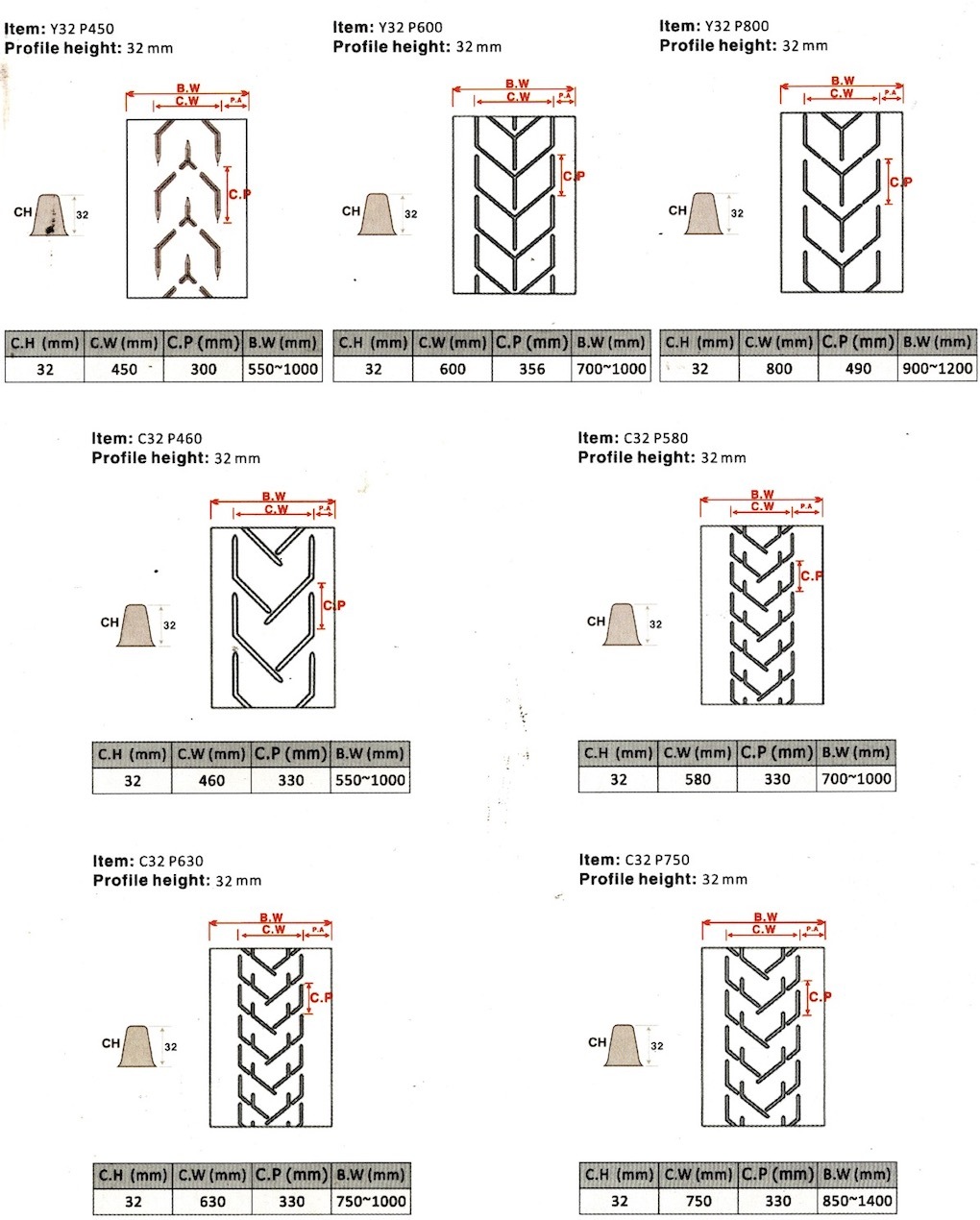

Mold drawing
